The basic functions match the depth of bench-top multimeters: fuse-protected current input, true RMS for accurate AC measurements, Auto ranging, Duty cycle, and Relative mode. These compact, reliable, and economical devices are ideal for any engineer.
| SELECTION GUIDE |
NEW |
 |
NEW |
NEW |
NEW |
||
| MODEL |
GDM-461 |
GDM-452 |
GDM-397 |
GDM-360 |
GDM-398 |
GDM-357 |
GDM-350B |
| Max. Display |
22000 |
19999 |
4000 |
6000 |
4000 |
1999 |
1999 |
| Auto Ranging |
√ |
|
√ |
√ |
√ |
|
|
| Analog Bar |
√ |
|
√ |
√ |
√ |
|
|
| True RMS |
√ |
|
|
√ |
|
|
|
| Display Backlight |
|
|
√ |
√ |
√ |
|
|
| Fused 10A Range |
√ |
√ |
√ |
√ |
√ |
|
√ |
| Auto Power off |
|
√ |
√ |
√ |
√ |
√ |
|
| DC Voltage |
1000V |
600V |
1000V |
1000V |
1000V |
600V |
250V |
| AC Voltage |
750V |
600V |
750V |
750V |
750V |
600V |
250V |
| DC Current |
10A |
10A |
10A |
10A |
10A |
10A |
10A |
| AC Current |
10A |
10A |
10A |
10A |
10A |
10A |
|
| Resistance |
220MΩ |
20MΩ |
40MΩ |
60MΩ |
40MΩ |
20MΩ |
20MΩ |
| Capacitance |
220mF |
20µF |
4000µF |
4000µF |
4000µF |
200µF |
|
| Frequency |
220MHz |
20kHz |
10MHz |
10MHz |
10MHz |
|
|
| Diode |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
| Continuity |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
| Temperature |
|
|
√ |
|
|
√ |
√ |
| Duty Cycle(%) |
√ |
|
√ |
√ |
√ |
|
|
| Transistor (hFE) |
|
|
|
|
√ |
|
√ |
| EF Function |
|
|
|
|
√ |
|
|
| REL |
√ |
|
√ |
√ |
√ |
|
|
| Data Hold |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
| Peak Hold |
√ |
|
|
|
|
|
|
| MAX MIN |
|
|
√ |
√ |
√ |
|
|
| RS232C |
√ |
|
√ |
√ |
|
|
Features
- GDM-452/357/350B
- 4 1/2 Digits 19999 counts (GDM-452), 3 1/2 Digits 1999 counts (GDM-357/350B)
- Manual Ranging, Continuity Beeper/Diode Test, Data Hold
- hFE Test (GDM-350B)
- Temperature Measurement (GDM-357/350B)
- Capacitance (GDM-452/357)
- Frequency Measurement (GDM-452)
- *GDM-461/397/360/398*

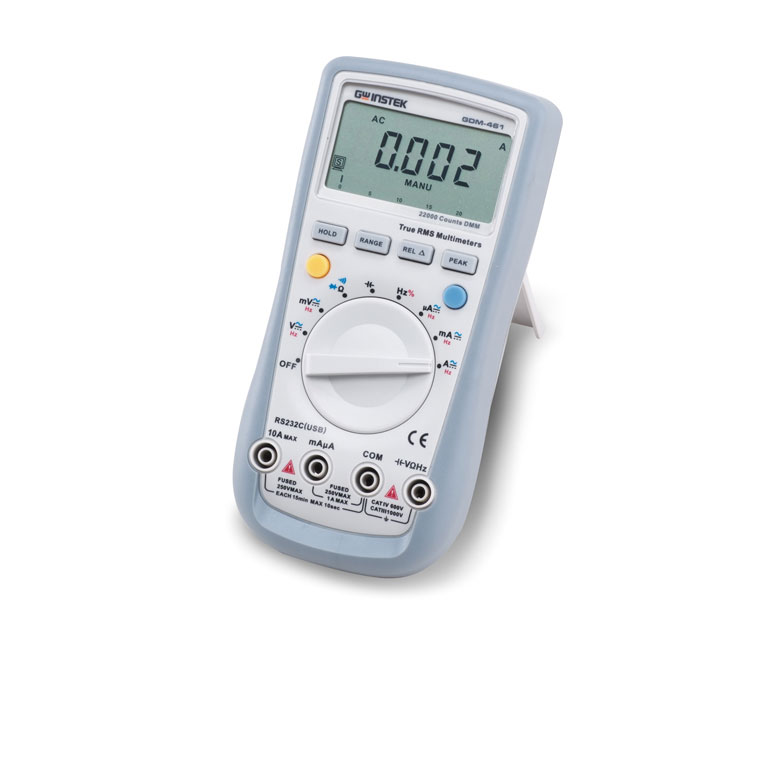

- 22000 Counts Auto/Manual Ranging (GDM-461)
- 4000 Counts Auto/Manual Ranging (GDM-397/398)
- 6000 Counts Auto/Manual Ranging (GDM-360)
- Capacitance, Frequency Measurement
- Continuity Beeper/Diode Test
- High Energy Fuse for 10A Range
- Data Hold/Relative Mode
- True RMS (GDM-461/360)
- RS232C (GDM-461/397/360)
