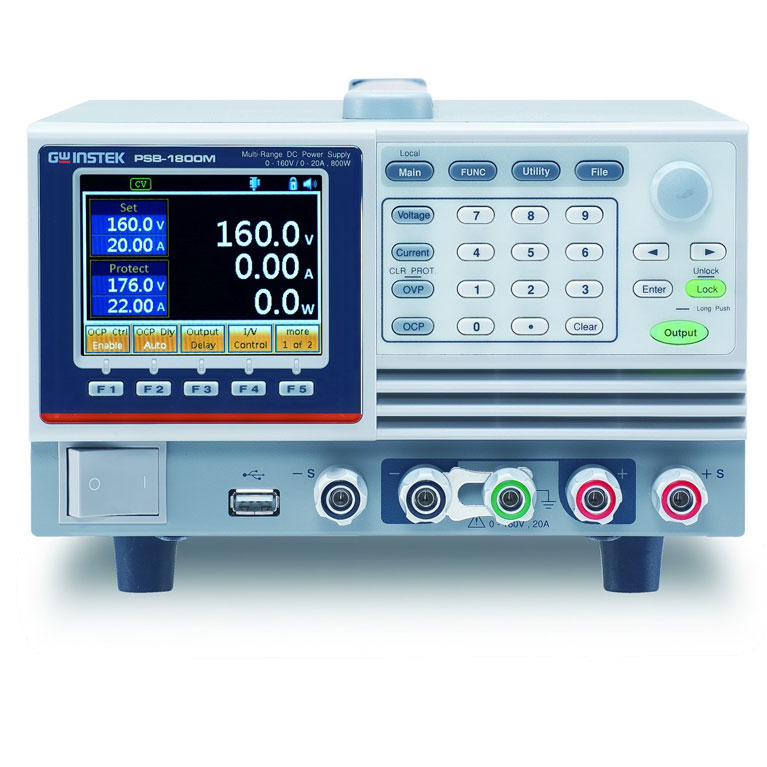

GW Instek PSB-1000 Series (Switching)

GW Instek debuts the PSB-1000 series, which is a single output channel, programmable and  multi-range DC power supply.

Quick info

Description

PSB-1400L(40V/40A); PSB-1400M(160V/10A), and 800W models: PSB-1800L(40V/80A); PSB-1800M(160V/20A). The maximum voltage output of 320V can be realized by placing 160V units in series connection.

By connecting PSB-1800Lunits in parallel, the maximum current output of320A can be achieved. The PSB-1000 series is a bench-top power supply featuring user friendly interface, which can clearly display setting conditions and measurement results via LCD display and menu-typed functionality selection without referring to the user manual. All settings can be done by functionality keys, numerical keys, and speed dial keys. The30Aoutput capability from the front terminal of the PSB-1000 series can better meet the requirements of laboratories and scientific R&D units.



Features
  • LCD display and menu-typed functionality selection
  • Support front panel output terminals (Max.30A) and rear panel output terminals (Rating current output)
  • Bleeder circuit control
  • I/V Control function
  • Sequence function
  • Power on Configuration
  • Internal Sense Control( Disable/ front panel/ rear panel)
  • Voltage trigger function
  • Output delay function
  • OCP Control function
  • Interface: USB Host, LAN, option: GPIB (PSB-105)
