Vector Network Analyzer – Bode 100

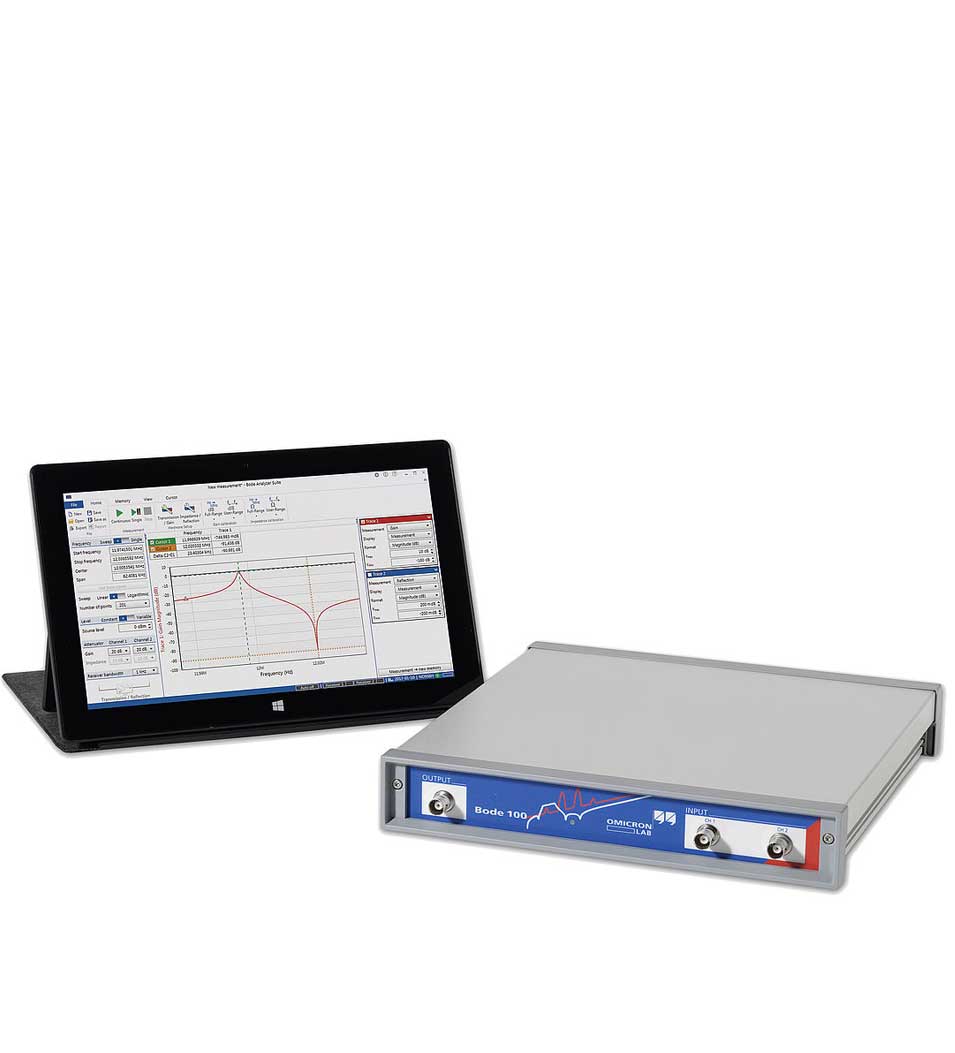

With the multifunctional Bode 100 you get an exact picture of your electronic circuits and components in a frequency range from 1 Hz to 50 MHz.
Bode 100 is a state of the art Vector Network Analyzer which also works as:
- Frequency Response Analyzer
- Gain/Phase Meter
- Impedance Analyzer
- Sine Wave Generator
With it’s high accuracy and unbeatable price-performance ratio, the Bode 100 is the best choice for industrial applications as well as research and educational labs.
Categories LCR Meters, Omicron Lab, Signal Sources, Vector Network Analyzer
Description
Use Bode 100 to measure:
- Complex gain of active and passive circuits
- Complex impedance and admittance of active and passive devices
- Swept S-parameters of electronic circuits and filters
- Group delay characteristics
Easily analyze:
- Stability of control circuits such as DC/DC converters in power supplies
- Parasitics of passive components and circuit boards
- Power-plane impedance for optimum decoupling
- Reflection coefficient and return loss of filters, antennas or amplifiers
- Ultrasonic and piezo electric devices
- Resonance behavior of high Q-circuits like oscillating crystals
- Resonance frequency and Q-factor of RFID and NFC tags and antennas
Features of Bode 100:
- Wide frequency range from 1 Hz to 50 MHz
- Adjustable output level from -30dBm to 13dBm
- Adjustable shaped level (variable signal level) over frequency
- Switchable channel input impedance (50 Ω / 1 MΩ)
- Highly sensitive inputs (superheterodyne receiver with 24 bit ADCs)
- Narrow-band receivers for highest noise rejection
- Flexible hardware design offering several measurement modes
- Fanless and therefore absolutely silent on your bench
Brochure
[wpdm_package id=’3677′]
[wpdm_package id=’4645′]
Video
Stability Analysis of Power Supplies with the Bode 100
