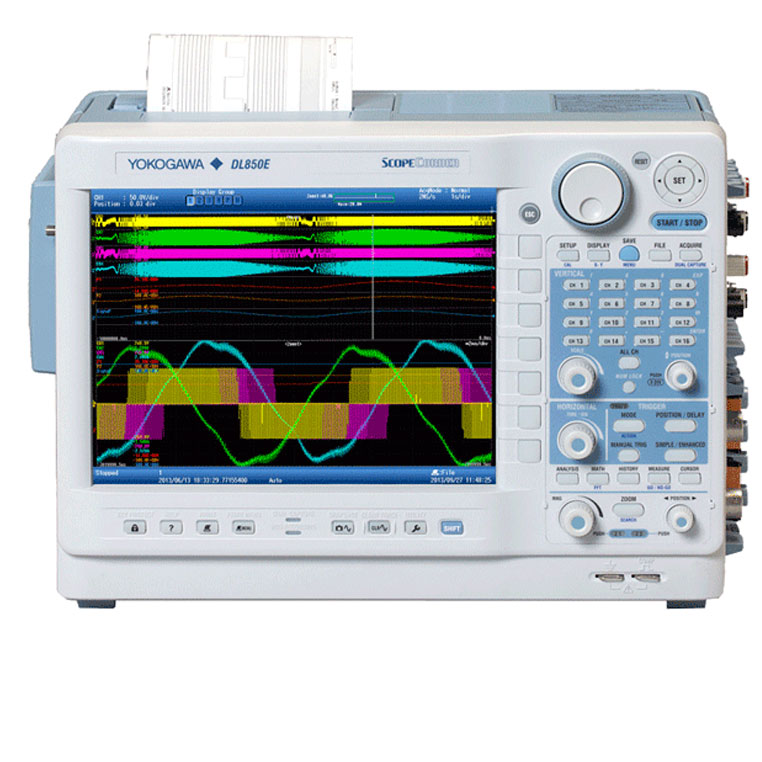

Yokogawa DL850EV ScopeCorder Vehicle Edition

The most feature-rich ScopeCorder, the DL850E combines a mixed signal oscilloscope and portable data acquisition recorder into a modular platform designed to capture both high-speed transients and low speed trends.

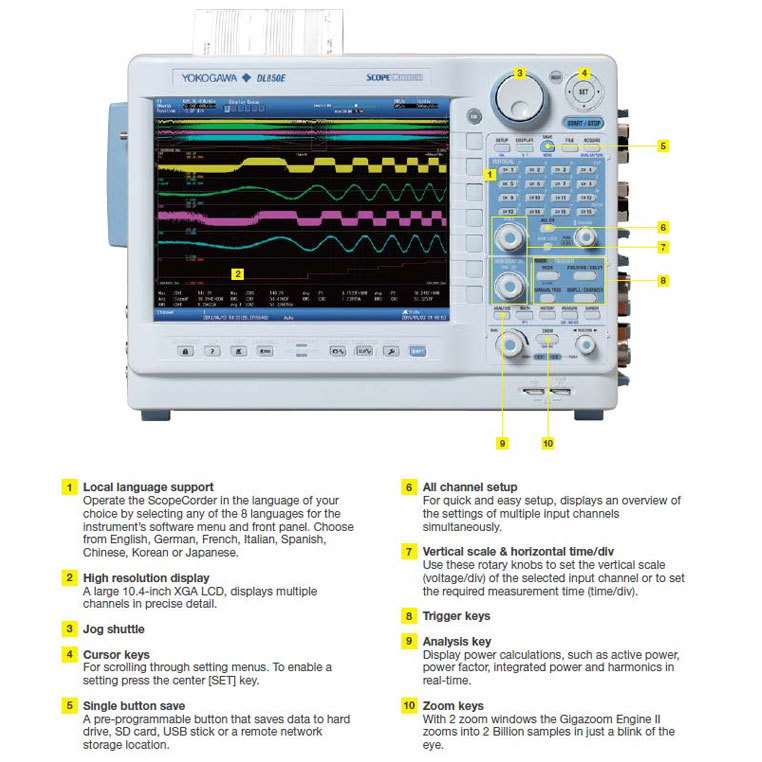

Combining signal conditioning, signal processing, and large recording memory, the DL850E is ready to be configured to meet your application demands. With its menu-driven user interface, advanced features are easily accessible, so you can gain insights and solve problems faster.


A ScopeCorder Vehicle Edition combines measurements of electrical signals, sensors outputs, together with CAN/CAN FD bus, LIN bus or SENT data transmitted by the powertrain management system
to provide thorough insight into the dynamic behaviour of the electromechanical system.

  • Compare CAN/CAN FD/LIN/SENT bus data with analogue sensor outputs
  • Decode up to 240 CAN sub channels
  • Battery powered operation (10 V – 18 V) – /DC option
