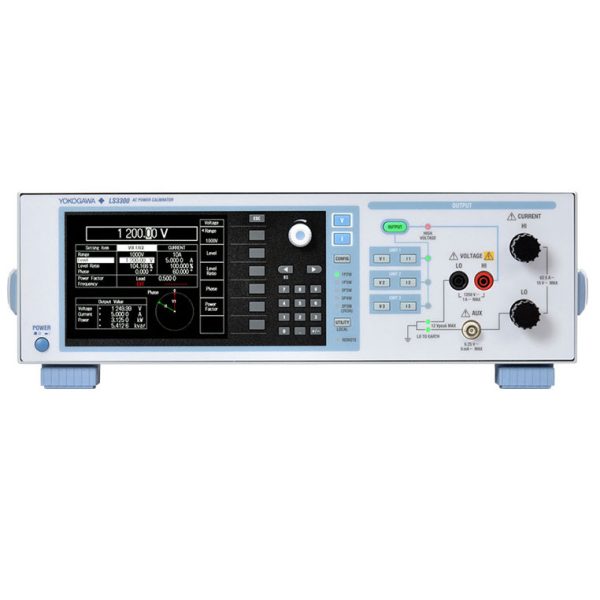

Yokogawa LS3300 AC power calibrator

A high precision AC Power Standard that is built upon Yokogawa’s history of developing superior sourcing instruments. The LS3300 is an AC signal generator capable of outputting both current and voltage simultaneously, thus allowing it to calibrate power measurement instruments such as current clamps/transformers, panel meters, RMS multimeters, and power meters.

Description

A high precision AC Power Standard that is built upon Yokogawa’s history of developing superior sourcing instruments. The LS3300 is an AC signal generator capable of outputting both current and voltage simultaneously, thus allowing it to calibrate power measurement instruments such as current clamps/transformers, panel meters, RMS multimeters, and power meters.

  • Best-in-class power accuracy of 100 ppm
  • High output current range 0.3 mA up to 62.5 A.
  • Output voltage 10 mV to 1250 V
